KX7 Replacement Parts

Greater Flexibility in Every Component

Every farmer fears the thought of ingesting a rock or foreign object into their combine. This is never a good thing, but our KX7 concaves keep repair costs to a minimum.

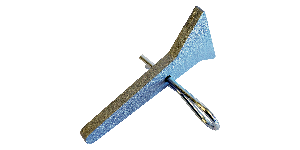

The box-insert design of our KX7 concaves may allow you to replace individual components rather than a full concave. Replacement parts are available for box inserts, frames, front ramps, and wedge locks. This could save you hundreds, if not thousands, of dollars!

Our replaceable KX7 components also allow for greater flexibility in configuring your concaves. While most users stick to our recommended configurations, those with unique field conditions have tinkered with their KX7 assemblies by mixing MaxThresh™ and MaxRound™ box inserts in a single frame.

Case IH Flagship

Models: 7010, 7120, 7230, 7240, 7250, 7260, 8010, 8120, 8230, 8240, 8250, 8260, 9120, 9230, 9240, 9250, 9260

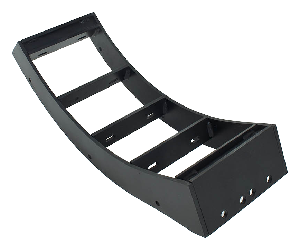

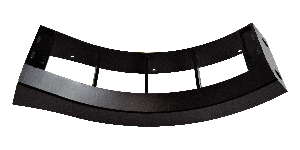

BA1-011: KX7 Empty Frame (RH)

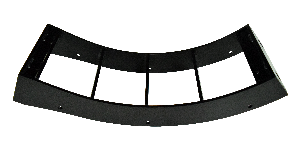

BA1-021: KX7 Empty Frame (LH)

Standard Box Inserts

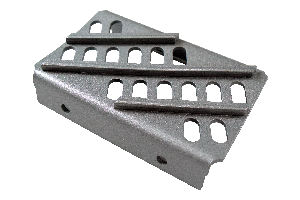

BB7-X04: KX7 MaxThresh Box Insert
Available for all combine offerings and comes standard with our exclusive Tungstrong^TM laser cladding wear enhancement on the threshing bars.

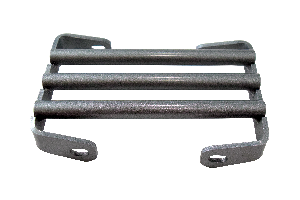

BB7-R05: KX7 MaxRound Box Insert
Available for all combine offerings and includes heat treated separation bars.

Specialty Threshing Box Inserts

BB7-X06: MaxThresh Small Hole Box Insert
Used with stripper headers or in low-yield small grains where smaller hole openings deliver greater performance.
BB7-M01: MaxBlock Box Insert
Used with smooth-flow crops, such as canola, sunflower, or clover.
BB7-X07: MaxClosed Box Insert
Used with stripper headers and in the toughest-threshing conditions of crops like wheat, durum, and clover.

Specialty Separation Box Inserts

BB7-S02: MaxGrate Box Insert
Used for greater separation in smaller seed crops, such as grass and canola.
BB7-R06: MaxFlow Box Insert
Used for grass seed harvesting, where their smaller bars increase crop flow without the hairpinning of traditional concaves.

Select early model Flagship machines may require a ramped front concave. Learn more about our KX7 options and configurations for these combines.

Case IH Mid-Range

Models: 1680, 1682, 1688, 2188, 2377, 2388, 2577, 2588, 5088, 5130, 5140, 5150, 6088, 6130, 6140, 6150, 6160, 7088, 7130, 7140, 7150, 7160

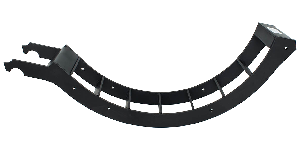

BA1-001: KX7 Frame

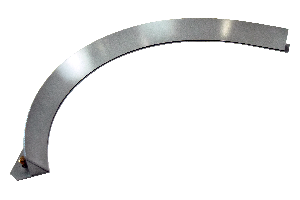

BA1-L05: KX7 Front Ramp

Standard Box Inserts

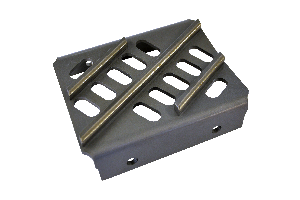

BB6-X04: KX7 MaxThresh Box Insert
Available for all combine offerings and comes standard with our exclusive Tungstrong^TM laser cladding wear enhancement on the threshing bars.

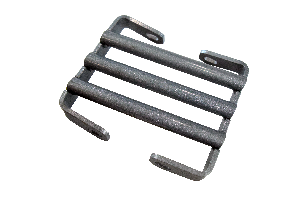

BB6-R05: KX7 MaxRound Box Insert
Available for all combine offerings and includes heat treated separation bars.

Specialty Threshing Box Inserts

BB6-X06: KX7 MaxThresh Small Hole Box Insert
Used with stripper headers or in low-yield small grains where smaller hole openings deliver greater performance.
BB6-M01: KX7 MaxBlock Box Insert
Used with smooth-flow crops, such as canola, sunflower, or clover.
BB6-X07: KX7 MaxClosed Box Insert
Used with stripper headers and in the toughest-threshing conditions of crops like wheat, durum, and clover.

Specialty Separation Box Inserts

BB6-S05: KX7 MaxGrate Box Insert
Used for greater separation in smaller seed crops, such as grass and canola.
BB6-R06: KX7 MaxFlow Box Insert
Used for grass seed harvesting, where their smaller bars increase crop flow without the hairpinning of traditional concaves.

Challenger/Gleaner/Massey Ferguson

Challenger Models: 660, 660B, 670, 670B
Gleaner Models: A65, A66, A75, A76
Massey Ferguson Models: 8560, 8570, 8780, 8780XP, 9520, 9690, 9695, 9790, 9795

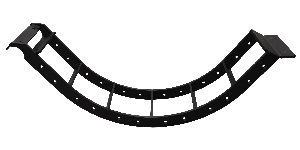

BA3-001: KX7 Frame

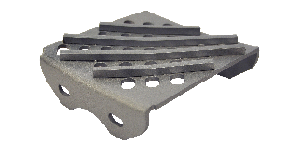

BB8-X04: KX7 MaxThresh Box Insert

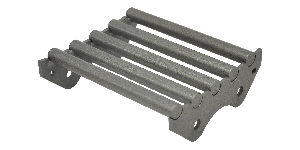

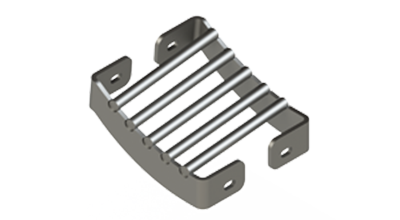

BB8-R02: KX7 MaxRound Box Insert

John Deere S/STS

Models: S550/S650, S660, S670, S680, S690, S760, S770, S780, S790, 9650 STS,
9650 STS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS
S7 600, S7 700, S7 800, S7 900

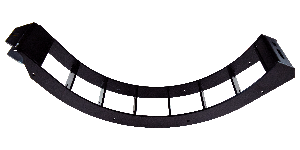

BA2-001: KX7 Empty Frame

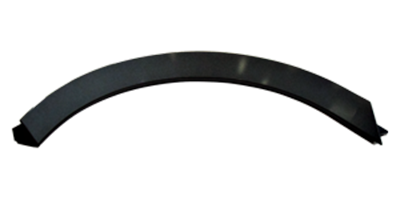

BA2-L02: KX7 Front Ramp

Standard Box Inserts

BB6-X04: KX7 MaxThresh Box Insert
Available for all combine offerings and comes standard with our exclusive Tungstrong^TM laser cladding wear enhancement on the threshing bars.
BB6-R05: KX7 MaxRound Box Insert
Available for all combine offerings and includes heat treated separation bars.

Specialty Threshing Box Inserts

BB6-X06: KX7 MaxThresh Small Hole Box Insert
Used with smooth-flow crops, such as canola, sunflower, or clover.
BB6-M01: KX7 MaxBlock Box Insert
Used with smooth-flow crops, such as canola, sunflower, or clover.
BB6-X07: KX7 MaxClosed Box Insert
Used with stripper headers and in the toughest-threshing conditions of crops like wheat, durum, and clover.

Specialty Separation Box Inserts

BB6-S05: KX7 MaxGrate Box Insert
Used for greater separation in smaller seed crops, such as grass and canola.
BB6-R06: MaxFlow Box Insert
Used for grass seed harvesting, where their smaller bars increase crop flow without the hairpinning of traditional concaves.
