Works Harder Longer

Kondex offers KX7 Extreme Wear boxes, frames, and assemblies for extended usage in extremely high-wear crops and conditions. These components feature our metallurgically bonded laser cladding wear coating on the most vulnerable areas of the part to provide the longest usage possible in your high-wear environment.

Case IH Flagship

Models: 7010, 7120, 7230, 7240, 7250, 7260, 8010, 8120, 8230, 8240, 8250, 8260, 9120, 9130, 9240, 9250, 9260

Laser cladding bonds a layer of tungsten carbide wear protection to our KX7 MaxThreshTM and MaxRoundTM box inserts, as well as to the inner radius of the left-hand frame assembly. This frame sees greater wear due to the crop flow direction. KX7 Extreme Wear components are available as replacement parts, as well as ThreshStartTM and full-rotor kits.

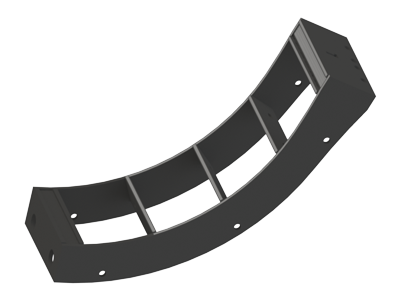

  • BA1-072: KX7 Extreme Wear Left-Hand Empty Frame

    Laser cladding is applied to the left-hand frame as shown in the silver areas on the above rendering

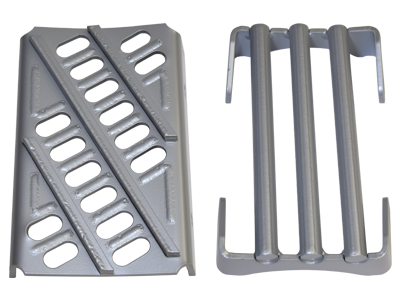

  • BB7-X09: KX7 Extreme Wear MaxThresh Box Insert and
    BB7-R09: KX7 Extreme Wear MaxRound Box Insert
  • BA1-X29: KX7 Extreme Wear Left-Hand MaxThresh Concave Assembly
  • BA1-X19: KX7 Extreme Wear Right-Hand MaxThresh Concave Assembly
  • BA1-R29: KX7 Extreme Wear Left-Hand MaxRound Concave Assembly
  • BA1-R19: KX7 Extreme Wear Right-Hand MaxRound Concave Assembly

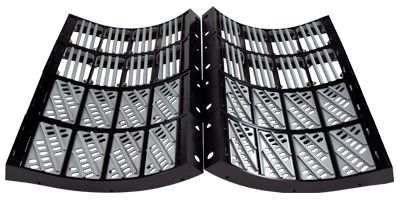

  • 716-109: KX7 Extreme Wear Easy-Threshing Small Grain Kit
    Rows Part No.
    LH 1-2 BA1-X29
    LH 3-4 BA1-R29
    RH 1-2 BA1-X19
    RH 3-4 BA1-R19
  • 716-110: KX7 Extreme Wear Corn/Soybeans Kit
    Rows Part No.
    LH 1-4 BA1-R29
    RH 1-2 BA1-X19
    RH 3-4 BA1-R19

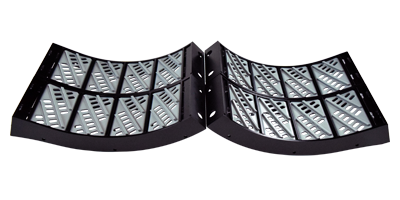

  • 716-111: KX7 Extreme Wear Small Grain ThreshStart Kit
    Rows Part No.
    LH 1-2 BA1-X29
    RH 1-2 BA1-X19

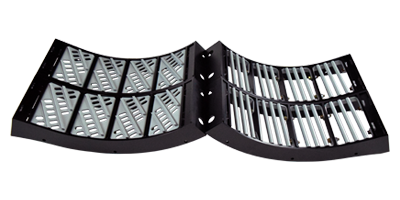

  • 716-112: KX7 Extreme Wear Large Grain ThreshStart Kit
    Rows Part No.
    LH 1-2 BA1-R29
    RH 1-2 BA1-X19

John Deere S/STS

Models: S550/S650, S660, S670, S680, S690, S760, S770, S780, S790,
9650 STS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS,
S7 600, S7 700, S7 800, S7 900

Laser cladding bonds a layer of tungsten carbide wear protection to our KX7 MaxThreshTM and MaxRoundTM box inserts, as well as the z-bar end of the frame and inner frame radius where the greatest wear is generated due to the crop flow direction. KX7 Extreme Wear components are available as replacement parts, as well as ThreshStartTM and full-rotor kits.

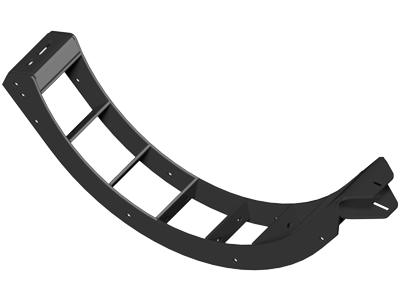

  • BA2-004: KX7 Extreme Wear Empty Frame

    Laser cladding is applied to the z-bar end of the frame as shown in the silver areas on the above rendering

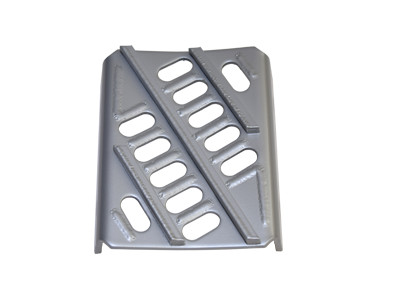

  • BB6-X09: KX7 Extreme Wear MaxThresh Box Insert
  • BB6-R09: KX7 Extreme Wear MaxRound Box Insert
  • BA2-X09: KX7 Extreme Wear MaxThresh Concave Assembly
  • BA2-R09: KX7 Extreme Wear MaxRound Concave Assembly
  • 716-105: KX7 Extreme Wear Small Seed Kit
    Rows Part No.
    - BA2-L02
    1-2 BA2-X09
    3-6 BA2-R09







  • 716-106: KX7 Extreme Wear Corn/Soybean Kit
    Rows Part No.
    - BA2-L02
    1 BA2-X09
    2-6 BA2-R09

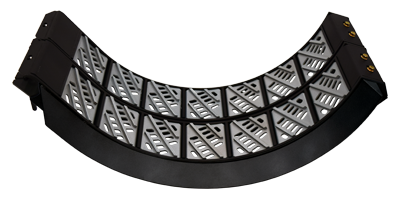

  • 716-107: KX7 Extreme Wear Small Grain ThreshStart Kit
    Rows Part No.
    - BA2-L02
    1-2 BA2-X09

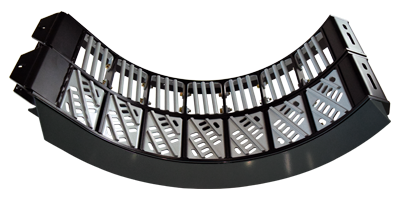

  • 716-108: KX7 Extreme Wear Large Grain ThreshStart Kit
    Rows Part No.
    - BA2-L02
    1 BA2-X09
    2 BA2-R09
