Select early-model Case IH Flagship combines require a ramped front concave to prevent crop damming when it first enters the rotor. Kondex offers the below KX7 ramped options; however, we no longer include these in our standard configuration tool as the need has diminished. If you have one of the combine models listed below and need a ramped concave option, please use our dealer locator or contact us to discuss your KX7 solution. The part numbers listed are available to all KX7 dealers.
Case IH models that may need a ramped front concave:
7010, 7120, 7230, 8010, 8230, 9120, 9230
Crop Configurations:
716-048:
Corn, Milo, Peas, Popcorn, Rice, Soybeans, Sunflower
| LH | RH | Qty | Installation |
| BA1-X45 | BA1-R55 | 1 | Row 1 |
| BA1-X15 | BA1-R25 | 1 | Row 2 |
| BA1-R15 | BA1-R25 | 2 | Rows 3-4 |
716-045:
Barley, Canola, Flax, Lupins, Oats, Rye, Wheat
| RH | LH | Qty | Installation |
| BA1-X45 | BA1-X55 | 1 | Row 1 |
| BA1-X15 | BA1-X25 | 2 | Rows 2-3 |
| BA1-R15 | BA1-R25 | 1 | Row 4 |
716-047:
Tough-Threshing Wheat
| RH | LH | Qty | Installation |
| BA1-X45 | BA1-X55 | 1 | Row 1 |
| BA1-X15 | BA1-X25 | 3 | Rows 2-4 |

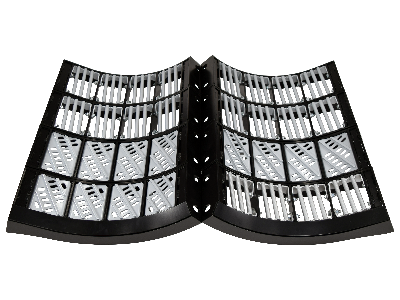

716-100:
High-Moisture Corn (23%+)
| RH | LH | Qty | Installation |
| BA1-X45 | BA1-R55 | 1 | Row 1 |
| BA1-X15 | BA1-X25 | 1 | Row 2 |
| BA1-R15 | BA1-R25 | 2 | Rows 3-4 |
Additional KX7 Components:
Front Position:
BA1-041: Empty Ramped Frame (RH)
BA1-051: Empty Ramped Frame (LH)
BB6-X04:
|
BB6-R05:
|
BB6-X06:
|
BB6-S05:
|
BB6-R06:
|
BB6-M01:
|
BB6-X07:
|
 |
|
 |
 |
 |
 |
 |
Mid/Rear Position:

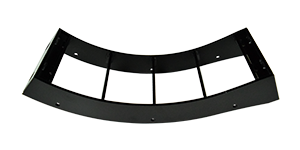

BA1-011: Empty Frame (RH)
BA1-021: Empty Frame (LH)
BB7-X04:
|
BB7-R05:
|
BB7-X06:
|
BB7-S02:
|
BB7-R06:
|
BB7-M01:
|
BB7-X07:
|
 |
 |
 |
 |
 |
 |
 |
